Annex A-Group Engineering Proposal


Final Idea: Artificial pancreas
(Automatic insulin pumps)


Group Project Proposal (Engineering)
SCHOOL OF SCIENCE AND TECHNOLOGY, SINGAPORE
INVESTIGATIVE SKILLS IN SCIENCE
Names: Yugan, Dinesh, Pranav, Asher
Class: S2-07
Group Reference: F

1.    Indicate the type of research that We are adopting:

[ ] Test a hypothesis: Hypothesis-driven research


[ ] Measure a value: Experimental research (I)


[           ] Measure a function or relationship: Experimental research (II)


[ ] Construct a model: Theoretical sciences and applied mathematics


[ ] Observational and exploratory research


[    √    ] Improve a product or process: Industrial and applied research





2: Write a research proposal of our interested topic in the following format:

Title: Development of artificial pancreas

2.1: Problem being addressed
The body uses a simple sugar, called glucose, as its primary fuel. We get glucose from the food we eat. Both table sugar (sucrose) and other types of carbohydrates, such as starch (found in large quantities in pasta and other grain-rich foods), are broken down by our bodies to make glucose.
Because food can be broken down to make glucose, the level of glucose in a person's blood—which is commonly referred to as the blood glucose level—usually goes up after he or she eats.
Like most of the chemicals in your blood, glucose must be tightly controlled. The level of glucose in your blood is regulated by insulin, a hormone made by the pancreas. When blood glucose levels rise after eating a meal, the pancreas releases insulin, which causes cells in the body (such as liver, muscle, and fat cells) to take up glucose, removing it from the blood and storing it (as glycogen) to use for energy later. When the blood glucose levels start falling, the pancreas stops releasing insulin, and the stored glucose is used for energy. If blood glucose levels get too low, the pancreas may produce glucagon, a hormone that increases the levels. This process is how the pancreas and the hormones it produces are in charge of regulating blood glucose levels. Watch this video to see how blood glucose levels can change over time for different people.

There are 2 types of diabetes, type 1 diabetes and type 2 diabetes.
In type 1 diabetes, the pancreas no longer secretes sufficient insulin. If left untreated, the blood glucose levels of a person with type 1 diabetes could be dangerously high, which is a condition called hyperglycemia.
In type 2 diabetes,a person has insulin resistance, which means their body does not respond to insulin, or their pancreas does not make enough insulin.
Currently, a person with type 1 diabetes (and some with type 2 diabetes) must take insulin supplements to treat the condition.
In simpler terms:
Glucose is a simple sugar that is a raw material for tissue respiration. During cellular respiration, glucose is oxidised to release energy for cellular activities. Therefore, glucose is an important source of fuel for our body. We obtain glucose from food. When we digest food and assimilate the soluble molecules, the glucose levels in our body rise. In order to bring back this increase to equilibrium (homeostasis), insulin is needed. Insulin is a hormone secreted by the islets of Langerhans into the bloodstream where it will be transported to muscle and liver cells. These cells have a high rate of cellular respiration and hence, need glucose to oxidise. For kids afflicted with Type 1 diabetes, the islets of Langerhans is not able to secrete sufficient insulin. This will cause adverse effects such as the weakening of the body and production of ketones (fats are oxidised) in urine which is lethal. Hence, children with Type 1 diabetes need to currently take insulin injections. However, we propose for a more efficient and convenient method of creating an artificial pancreas which will then replace the original one. The objective is to alleviate stress levels within children and to ensure that they have a balanced level of the insulin hormone and hence, glucose levels in their body.

What insulin does:
  1. Make cell surface membrane more permeable to increase uptake of glucose
  2. Insulin STIMULATES Liver cells and Muscle cells to store EXCESS glucose to glycogen
  3. During tissue respiration, oxidation of glucose is increased.





2.2: Goals

Our goals for this experiment
1)To detect the glucose level in the person who is using the artificial pancreas
2)Automatically dispense insulin into the body relative to the glucose level in the body
3) When the person has high glucose levels,the glucose sensor detects the high level of glucose and the pump runs, pumping insulin into the bloodstream . When the glucose level has stabilised, the pump stops.
4)In our project, we will assume that the glucose level in blood in represented by vinegar and the insulin is represented by baking soda











To solve the problem

Specify Requirements
  1. Able to measure the glucose level
  2. Able to inject ‘insulin’
  3. Able to control the amount of insulin flowing

Alternative Solutions

Design 1
Insulin pills/tablets
Insulin pills, also known as insulin tablets, remain at an early stage of clinical trials with several companies racing to establish this as a credible alternative to insulin injections.
Giving diabetes patients the chance to avoid the pain of needles has been the goal of many pharmaceutical companies for many years. But it cannot be reliable.

Problems:
It is difficult to ingest, It is a protein that degrades in the stomach and small intestine, making it almost impossible to design oral delivery which works.
The past has seen massive oral insulin efforts flop as in clinical trials, there have been no significant health risks associated with oral insulin compared to regularly administered insulin. including the inhalable insulin Exubera.

Design 2
Insulin injections:Insulin comes as a solution (liquid) and a suspension (liquid with particles that will settle on standing) to be injected subcutaneously (under the skin). Insulin is usually injected several times a day, and more than one type of insulin may be needed. There are many variables such as types of insulin to use, how much insulin to use and how often to inject insulin.Insulin controls high blood sugar but does not cure diabetes.
Insulin comes in vials, prefilled disposable dosing devices, and cartridges. The cartridges are designed to be placed in dosing pens.  There are 2 types of insulin, U-100 or U-500.



Problems:
Low blood glucose levels can occur because you may be using different types of insulin.
Frequent injections mean you may develop resistant areas of the body where insulin will not absorb properly.





Design 3

Artificial pancreas

People who have diabetes usually need to keep close track of how much sugar is in their blood (called their blood glucose levels)by testing a drop of blood from a finger prick. If there is too much sugar in their blood, some diabetics take insulin shots to decrease it. However, it can also be dangerous to have too little sugar in a person's blood. Because of this, one area of intense research right now is on making an artificial pancreas, or basically a device that automatically adjusts a person's blood sugar levels. In this science project, you will build a circuit that has to face some of the same issues that an artificial pancreas does.So basically what it does is that it will sense the amount of sugar in your blood.So when the sugar in your blood is higher than the average level,it detects it and pumps in insulin to make sure that you would not get high blood pressure and lowers the amount of sugar in your blood.This device is useful to people who have diabetes and dislike taking injections and taking pills,because this device helps you track the amount o insulin and warn you when you have more than the average amount of sugar in your blood and alerts you.

Pros

  • The pump delivers insulin continuously throughout the day, causing fewer sudden highs and lows in blood glucose levels.
  • Insulin delivery is more accurate and precise.
  • There will be less needle sticks. You may have one injection (hook up) every three days versus 15-18 injections in a three-day period with injection therapy, according to O’Donnell.
  • Adjusting your own insulin allows a more flexible lifestyle.
  • Beneficial for children who are afraid of needles, etc

Cons

  • It is attached to your body (1 pumps) all day, reminding you and others that you have diabetes.
  • Pump supplies are expensive.

Best solution and reason
Artificial pancreas because it has less cons and more pros and more convenient.Furthermore it is able to detect the amount of sugar in your blood and pump in the insulin all by itself .








2.3: Description in detail of method or procedures (The following are important and key items that should be included when formulating ANY AND ALL research plans.)

2.3.1: Equipment list: (for the body)
1)Solderless breadboard-7.93
2)330 kΩ resistor-0.13
3)100 kΩ resistor-0.13
4)Jumper wire kit-9.26
5)N-channel MOSFET-1
6)1 MΩ potentiometer-1.67
7)Alligator clip test leads (4)-2.60
8)Battery holder for 8 AA batteries with wires-1.45
9)AA batteries (8)-1.07 x 8
10)24 AWG bare copper wire-11.93
11)ph stripes

Total cost:$44.66

Other Important Items(For the testing)
1)12 V peristaltic liquid pump.(We will need at least 40 cm of tubing.)
2)Digital scale with 0.1 g increments.
3)Graduated cylinder, 100 mL or 250 mL
4) pH test strips

2.3.2:Materials (For testing whether the artificial pancreas works)

  1. Piece of Styrofoam® (at least 4 cm × 7 cm)
  2. Bendable plastic drinking straw
  3. Scissors/wire cutters.
  4. Ruler, metric2
  5. Baking soda (at least 90 g)
  6. Measuring cup or other small container to use for weighing baking soda on the scale
  7. Distilled white vinegar (at least 1 L)
  8. Distilled water (at least 1.2 L)
  9. Mixing bowls (at least 3). Two will need to be able to hold at least 400 mL, or 0.5 quarts, each.
  10. Masking tape and a permanent marker for labeling bowls.
  11. Permanent marker
  12. Tape
  13. Lab notebook





2.4: Procedures: Detail all procedures and experimental design to be used for data collection
2.4.1: Take a look at the breadboard before we begin. Become familiar with its layout.
2.4.2: The breadboard we have should look like Figure 5, below.
  1. Note: Other types of breadboards can be used, but directions are provided here only for the type shown in Figure 5. If we use a different type, we may need a person with electronics experience to show us how to use it for this project.
  2. Note that the breadboard has 30 rows (labeled 1–30), 10 columns (labeled A–J), and 4 bus strip columns (two red and two blue).
  3. The bus strips (also called power buses) supply power to the electronic components connected to the breadboard. The red columns supply the power, while the blue columns are the ground. we do not need to understand the details of this to do this science project.
A blank breadboard.
Figure 5. Picture of the breadboard used in this project (left) and a diagram of an empty breadboard (middle). The breadboard on the right is the one we are using for this experiment.
2.4.3: Insert one of the leads (metal wire ends) of the 330k Ω resistor into hole B1 (under the column labeled "B" in the row labeled "1") and the other wire into the left-side red bus strip, as shown in Figure 6, below.
  1. Note: We will be using two resistors in this project. Each resistor has four bands of color on its main body. The 330 kΩ resistor has the bands orange, orange, yellow, and gold. The 100 kΩ resistor has the bands brown, black, yellow, and gold. (The orientation of the resistor in the breadboard does not matter.)
A breadboard with a 330K resistor.
Figure 6. Insert the 330k Ω resistor into holes B1 and the left-side red bus strip.
2.4.4: Insert the leads of the 100k Ω resistor into hole C1 and the left-side blue bus strip, as shown in Figure 7, below.
  1. Safety note: Be sure the leads of the resistors are not touching. When we connect the batteries to the circuit later, this could short the circuit.
A breadboard with two resistors.
Figure 7. Insert the 100k Ω resistor into hole C1 andw the left-side blue bus strip.
2.4.5: Take a small piece of jumper wire (the black pieces from the jumper kit from Jameco are a good length) and insert the ends of the wire into hole A5 and the left-side blue bus strip, as shown in Figure 8, below.
  1. Note: Any color jumper wire from the kit will work the same. The different colors just help distinguish different lengths.
A breadboard with two resistors and a black wire.
Figure 8. Insert a short piece of jumper wire (black here) into hole A5 and the left-side blue bus strip.
2.4.6: Insert the MOSFET so that its three leads go into holes B5, B6, and B7, as shown in Figure 9, below. Orient it so that the smaller black-coated side is facing towards the right, and the large metal tab is facing to the left.
A breadboard with two resistors, a black wire, and a MOSFET transistor.d
Figure 9. Put the MOSFET into holes B5, B6, and B7, with the black side facing to the right (where the higher-lettered columns are).
2.4.7: Take a piece of jumper wire that is about half the length of the breadboard (the red pieces from the jumper kit are a good length) and insert the ends of the wire into holes A7 and A25, as shown in Figure 10, below.
A breadboard with resistors, wires, and a transistor.
Figure 10. Insert a piece of jumper wire (red here) into holes A7 and A25.
2.4.8: Insert the three pins of the potentiometer (which is blue with a white knob) into holes B24, B25, and B26, as shown in Figure 11, below.
  1. Note: It does not matter in which direction the potentiometer is facing.
A breadboard with wires, transistor, and potentiometer.
Figure 11. Insert a potentiometer (blue and white) into holes B24, B25, and B26. Note that the potentiometer only has three pins, even though its blue plastic casing takes up more than three rows on the breadboard.
2.4.9: Take a small piece of jumper wire (the black pieces from the jumper kit are a good length) and insert the ends of the wire into hole A26 and the left-side blue bus strip, as shown in Figure 12, below.
A breadboard with two black wires, resistors, transistor, and potentiometer.
Figure 12. Insert a piece of jumper wire (the black bottom wire here) into holes A26 and the left-side blue bus strip.

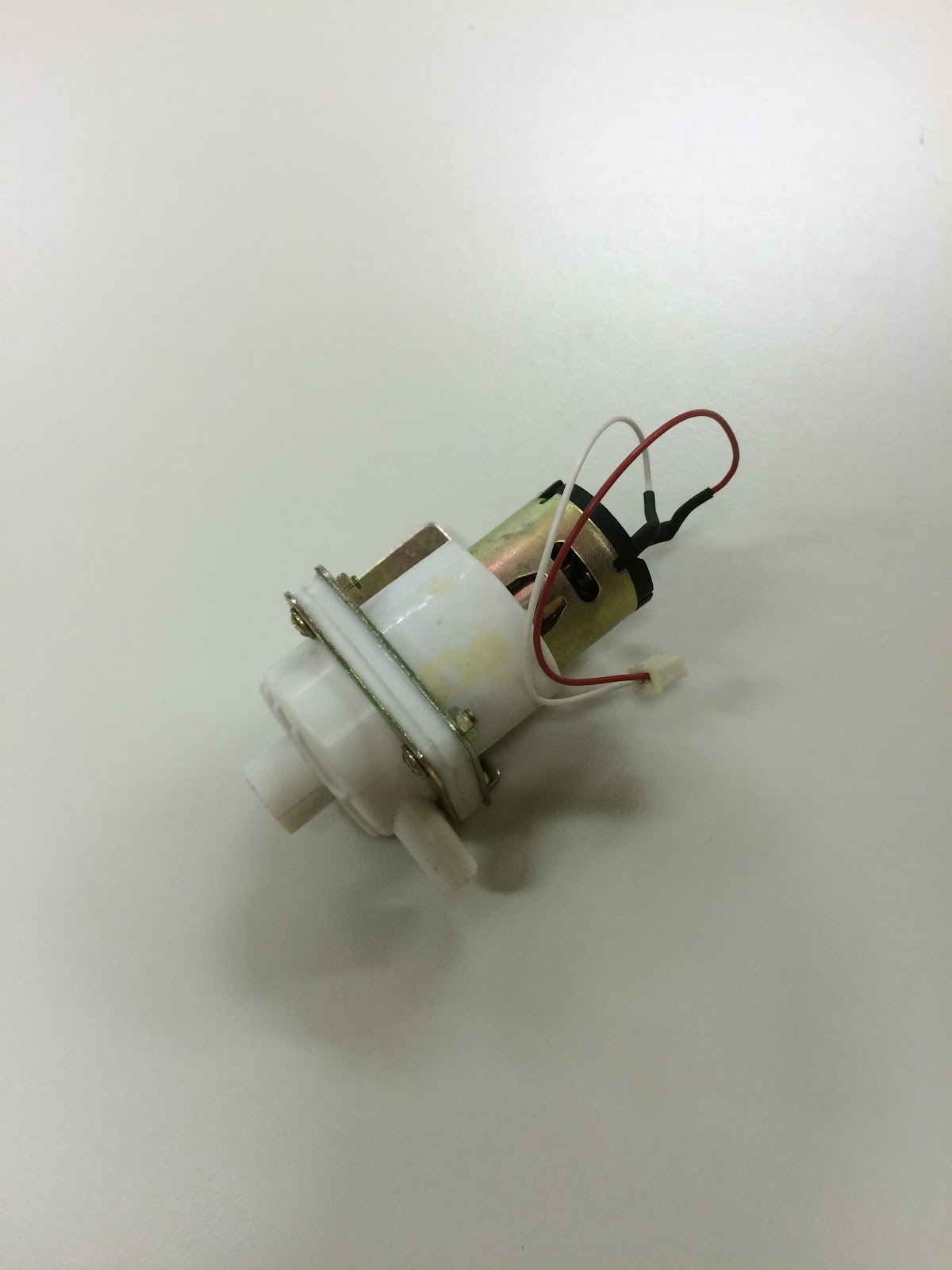

2.4.10: Next, connect the peristaltic metal pump to the breadboard.
  1. First, connect alligator clips to the metal leads of the peristaltic pump, as shown in Figure 13, below. Connect one alligator clip to each metal lead.
  2. Connect the other end of each alligator clip test lead to the breadboard. One lead should go into hole E6, and the other should go into the left-side red bus strip.
(i) Depending on the type of alligator clip test leads we have, we may connect the test leads to the breadboard in different ways. If the other end of the test lead is a wire (as shown with the top pump wire in Figure 13), then we can put it directly in the breadboard hole. If the other end of the test lead has an alligator clip (as shown with the bottom pump wire in Figure 13), then we will need to attach it to a short jumper wire piece, and insert that wire into the breadboard hole.
(ii) It does not matter which test lead goes into which holes. The orientation will only affect which direction the pump pumps liquid in.
A breadboard showing a pump being connected.
Figure 13.
2.4.11: Attach the peristaltic pump to the breadboard by using the alligator clip test leads to connect the pump to hole E6 and the left-side red bus strip. (Note that the pump is not drawn to scale in the diagram on the bottom right.)
  1. Now connect two more alligator clip test leads to the breadboard. Connect the end of one to hole E1, and the end of the other lead to hole C7, as shown in Figure 14, below.
  2. The other ends of both leads should remain unconnected for now; these will connect to the electrodes that we will use for the conductivity sensor.

Top part of a breadboard with wires, transistor, and resistors.Figure 14.
2.4.12: Connect two more alligator clip test leads to the breadboard, putting the end of one in hole E1 and the end of the other in hole C7. Note that only the ends of the leads are shown in the picture on the left.
  1. Lastly, connect the battery holder to the breadboard by putting the end of the holder's red wire in the left-side red bus strip and the black wire's end in the left-side blue bus strip, both in the bottom row, as shown in Figure 15, below.
A breadboard with wires, resistors, transistor, resistors, and connections to a battery pack and pump.
Figure 15.
2.4.13: Connect the battery holder to the breadboard (in the bottom row) by putting the holder's red wire in the left-side red bus strip and the black wire in the left-side blue bus strip. (Note that the pump and battery pack are not drawn to scale in the diagram on the right.)
  1. Put 8 AA batteries into the battery holder. Make sure each battery is oriented correctly, with the "+" and "-" ends of each battery going the correct direction (i.e., line up the "+" symbols on the batteries with the "+" symbols on the battery holder).
2.4.14: The circuit has now been assembled on the breadboard! Our assembled breadboard circuit should look similar to the one in Figure 16, below.
A breadboard with wires, resistors, transistor, resistors, and connections to a battery pack and pump.
Figure 16.
  1. Our assembled circuit on the breadboard should look similar to this one. b. Note that the ends of the wires going off of the top left part of the picture should not be connected to anything yet; they will be connected to a conductivity sensor in the next part of the procedure. (Note that the pump and battery pack are not drawn to scale in the diagram on the right.)

2.5: Making the Conductivity Sensor

In this part of the procedure, we will make a conductivity sensor and connect it to our breadboard circuit. The sensor will be made using bare copper wire, a straw, scissors, and a small piece of flat Styrofoam.
2.5.1: Cut out a small segment of plastic straw, about 6 centimeters (cm) long.
  1. If possible, one end of the segment should have the ridged, bendable part of the straw on it; this will help keep the wire on the sensor.
2.5.2: Take a spool of bare copper wire and cut two pieces that are about 15–16 cm long each. Note: Cutting the wire with scissors may dent the scissors, so use a pair of scissors that may be alright to dent, or use a pair of wire cutters.

2.5.3: Wrap the end of each copper wire tightly around the straw, looping it about four times with each wire, as shown in Figure 17, below. Wrap the wires about 4 cm apart from each other on the straw, and leave the wires with tails that are about 6 cm long (or longer) each.
  1. The wire should be wound tightly around the straw so that the wire does not easily slide around on the straw. If the wires move much, they could change the amount of conductivity detected by the sensor.
  2. However, even if the wires do move some, this should be fixed when we add the Styrofoam piece next.
Blue straw connected to copper wire to make a sensor.
Figure 17.
2.5.4: Wrap the ends of two copper wires around a segment of straw, making about four loops with each wire.
2.5.5: Next, cut out a piece of flat Styrofoam that is about 4 cm × 7 cm.
2.5.6: Carefully poke the copper wire tails from the straw through the Styrofoam piece, keeping the wires the same distance apart that they are on the straw piece, as shown in Figure 18, below. Place the Styrofoam about 1–2 cm above the straw.
Blue straw connected to copper wire and going through Styrofoam to make a sensor.
Figure 18.
2.5.7: Push the copper pieces through a small rectangle of Styrofoam.
  1. On the top side of the Styrofoam (opposite the side where the straw is), make a sharp bend in each wire, right above the Styrofoam, as shown in Figure 19, below. Make sure the bend is sharp enough to keep the wires from sliding down through the Styrofoam.
  2. The sensor will be going into a bowl of liquid, and the amount of copper wire submerged in the liquid can change how much conductivity the sensor detects. Because of this, it is important that the amount of wire submerged in the liquid is always the same. Since Styrofoam floats, the Styrofoam piece will help keep the wires submerged at the same depth in the liquid for our tests.
Styrofoam with bent copper wire.
Figure 19.
2.5.8: Make sharp bends in each wire, just above the Styrofoam on the side without the straw.
2.5.9: Lastly, attach the unconnected alligator clip leads from our circuit to the copper wires on the sensor, as shown in Figure 20, below. It does not matter which clip is connected to which wire.
Conductivity sensor made from a straw, copper wire, and Styrofoam. Credits: Teisha Rowland, for Science
Figure 20.
2.5.10: After attaching the alligator clips to the copper wires, the conductivity sensor should look like the one here.
2.5.11: our artificial pancreas model circuit is now complete and ready for testing! It should look similar to the one shown in Figure 21, below.
Complete insulin pump model circuit.
Figure 21. The complete insulin pump circuit should look similar to this one. (Note that the pump and battery pack are not drawn to scale in the diagram on the right.)



• Risk and Safety: Identify any potential risks and safety precautions to be taken.

Risks
Safety measures
To whom does this apply to?
When cutting the jumper wire to fit in the small box we may get electrocuted.
DO NOT TOUCH THE WIRES WHEN THE BATTERY IS CONNECTED AT ALL TIMES!
Everyone
When bending the edge of the wire, we might injure and cut our finger
Use a plier to bend the wire, it may take some time but its safe.
Everyone
Since the breadboard is small we might miss the place where we have to put the wires.
We have to open our eyes and see where we are putting our wires
Everyone

Vinegar and Other Chemicals
Since vinegar and baking soda will react we have to make sure that we pour the baking soda into the vinegar slowly giving it time to react.
Everyone




Data Analysis: Describe the procedures you will use to analyze the data/results that answer research questions or hypotheses




How to test the Artificial Pancreas

In this part of the procedure, we will test our artificial pancreas model. We will do this by first normalizing it to a neutralized solution to make sure the pump will turn off once our solution is neutralized. We will then put the conductivity sensor in an acidic solution (i.e., pure vinegar), which will make the pump move a basic solution (i.e., a solution of baking soda) into the bowl of acidic solution until the solution is neutralized and turns off the pump.
  1. Take three mixing bowls and label them "Neutralized," "Vinegar," and "Baking Soda."
    1. For labeling, we can use masking tape and a permanent marker or small sticky notes and a pen or pencil.
  2. On a scale, place a measuring cup or other small container to weigh baking soda on the scale. Zero out the scale and then weigh out   (g) of baking soda.
  3. Put the 28.6 g of baking soda into the mixing bowl labeled "Baking Soda."
  4. Use the graduated cylinder, or a metric measuring cup, to measure out 400 milliliters (mL) of distilled water. Add the 400 mL of distilled water to the baking soda in the mixing bowl.
  5. Mix the water and baking soda until the baking soda is completely dissolved.
    1. Measure out 100 mL of the baking soda solution and add this to the mixing bowl labeled "Neutralized."
    2. Tip: We would want to use a small cup with a spout to transfer the baking soda solution.
  6. Measure out 100 mL of distilled white vinegar and very slowly add it to the "Neutralized" bowl.
    1. Caution: Mixing an acidic solution with a basic solution can cause a powerful chemical reaction. We must pour the vinegar into the bowl very slowly to give the two solutions time to slowly react, otherwise we may end up with a big mess and will need to make up fresh solutions!
    2. What happens as we pour the vinegar into the baking soda solution?
    3. Once the reaction has slowed, slowly mix the solution to make sure the vinegar and baking soda have completely reacted.
    4. Note: The amounts of vinegar and baking soda we are using are the same. Because of this, the acid and base should react and neutralize the solution.
    5. Optional: If we want to see what the pH of the neutralized solution is, we can measure it now using pH test strips and record it in our lab notebook. Note that the pH will not be 7, but may be closer to 6, because of buffering effects of the solutions.
  7. Measure out 200 mL of distilled white vinegar and carefully pour it into the "Vinegar" bowl. Take the tubing from the pump and place both ends in the "Vinegar" bowl.
    1. Optional: If we want to see what the pH of the vinegar is, we can measure it now using pH test strips.
  8. Once the vinegar-baking soda solution stops reacting, the solution should be neutralized. Carefully place our conductivity sensor in the "Neutralized" bowl, letting the straw part be submerged and the Styrofoam piece float on the surface, as shown in Figure 22, below. our overall setup should now look similar to the one in Figure 23, below.
    1. If the Styrofoam piece is not floating evenly, we can try taping the test leads onto the rim of the mixing bowl to keep things in place.
Conductivity sensor submerged in liquid.
Figure 22. Place the conductivity sensor in the neutralized solution so that the Styrofoam piece floats and the straw part with wrapped wire is submerged.

Complete insulin pump model circuit being normalized.
Figure 23. When we are equilibrating the artificial pancreas circuit in a neutralized solution, our setup should look like this one.
  1. The pump may start running as soon as we put the conductivity sensor in the neutralized solution, but do not worry if the pump is not running yet. (When the pump runs, vinegar should simply be pumped out of, and then back into, the "Vinegar" bowl.) In this step, we will normalize our artificial pancreas model so that the pump does not run in a neutralized solution, but still runs in a solution that is slightly more acidic (which will be more conductive). We will do this by adjusting the potentiometer (the blue component with the white knob that we put in holes B24, B25, and B26).
    1. Remember that a potentiometer is a variable resistor; we can change its resistance by turning the white knob. When we change the resistance of the potentiometer, this affects how much voltage is sent to the transistor, which controls whether the pump is turned on or not. If we want to find out more about how this works (it involves forming a voltage divider with the conductivity sensor).
    2. If the pump is not running, slowly and gently turn the white knob on the potentiometer until the pump turns on. Try turning it all the way clockwise and all the way counter-clockwise find out which way turns the pump on (which way we need to turn it will depend on which way we put the potentiometer into the breadboard).
    3. Once the pump is running, very slowly turn the potentiometer's knob in the opposite direction to turn the pump off. Stop turning the knob when it is just reaches the point that makes the pump turn off. we can play around with adjusting the knob until we are satisfied that the pump does not run in the neutralized solution (but will still run if turned slightly).
      1. While we are adjusting the potentiometer, identify which pump tube has liquid flowing out of it. When the pump is not running, dry the end of this tube and mark it with a small dot using a permanent marker. This will help we in the next step when we need to pump a liquid into a different bowl.
    4. Safety note: Do not leave the pump running unattended, and do not let the circuit run for more than about 15 minutes at one time. Note that the transistor may become warm while the pump is running, but it should not become dangerously hot. If it is very hot, or if we notice any smoke or a burning smell, this probably means that we have a short circuit. Immediately disconnect the battery pack from the breadboard, and make sure that everything else is connected correctly by referring to the diagrams above. Just one misplaced wire can prevent the circuit from working, or create a short circuit! Remember to make sure that the exposed metal parts of different components, like the resistors and alligator clips, are not bumping into each other, as this will also create a short circuit.
    5. Note: If the pump does not turn on, no matter how we turn the potentiometer's knob, check the following:
      1. Make sure all of the jumper wires and components are pushed firmly into the breadboard's holes. A single loose wire can prevent the circuit from not working.
      2. Make sure no exposed metal parts (like the leads of the resistors) are touching each other, as this will create a short circuit.
      3. Be especially careful to avoid creating a short circuit by having wires from the red and blue bus strips touch each other. This can make the circuit get dangerously hot and can even melt some of the plastic components.
  2. Once we have normalized our artificial pancreas model so that the pump does not run when the conductivity sensor is in a neutralized solution, carefully remove the conductivity sensor from the neutralized solution (leaving the pump's tubes in the "Vinegar" bowl), and rinse the sensor briefly with some vinegar (over a sink or a different bowl). This will help remove the neutralized solution from the sensor.
  3. Now leave the pump tube that we marked in step 10.c.i. (the outlet tube) in the "Vinegar" bowl. Take the other pump tube (the unmarked, inlet tube), wipe the outside down with a paper towel or clean rag, and then place it in the "Baking Soda" bowl.
  4. Next, place the conductivity sensor in the "Vinegar" bowl. our setup should look like the one in Figure 24, below. The pump should start running, pumping baking soda solution (a drop or a few drops at a time) into the bowl of vinegar, and we should see bubbles being made as the acid-base reaction takes place.
    1. Note: Make sure the sensor is floating the same way that it was in the neutralized solution. If needed, tape the alligator clip test leads to the side of the bowl to hold them in place so that the Styrofoam piece is floating evenly. It is very important to make sure that the sensor is submerged in the liquid to the same depth that it was in the neutralized solution or our results may be inaccurate.
Complete insulin pump model circuit being tested.
Figure 24. When we are neutralizing the vinegar solution with baking soda, this is what the setup should look like.
  1. While the pump is running, carefully and continually move the end of the pump tube in the "Vinegar" bowl so that the baking soda mixes well with the vinegar throughout the bowl (including under and around the sensor). It is very important to have all of the baking soda and vinegar mixed together to neutralize the vinegar solution.
  2. Eventually, the pump should slow down and then stop running. It might turn on and off as we mix the last bits of baking soda that is pumped in; if it does this, wait until it stops running for at least 10 seconds before moving on to the next step.
    1. Optional: If we want to see what the pH of the solution in the "Vinegar" bowl is now (it should be neutralized), we can measure it using pH test strips and record our results in our lab notebook.
  3. When the pump stops, measure how much baking soda solution is left in the "Baking Soda" bowl by carefully pouring it into a metric measuring cup or a graduated cylinder using a funnel. In our lab notebook, record how much baking soda solution is remaining.
    1. Note: There may be more liquid in the bowl than can fit in the measuring cup or graduated cylinder, so we may need to fill it up (and empty it out) multiple times to measure the total amount of baking soda.
  4. Analyze our results and determine how accurate this artificial pancreas model is.
    1. Since the baking soda solution we prepared is at the same concentration as the vinegar, they should make a neutralized solution when the same amount of each have been mixed together. This means that 200 mL of vinegar should be neutralized with 200 mL of baking soda solution. Because the "Vinegar" bowl had 200 mL of vinegar (from step 8) and the "Baking Soda" bowl had 300 mL of baking soda solution (since we prepared 400 mL in step 4, but removed 100 mL in step 6), the pump should have ideally stopped when 100 mL of baking soda was remaining in its bowl. How close were the results (from step 16) to 100 mL baking soda solution? Was there too much or too little baking soda remaining?
    2. There are many reasons why it may not have taken exactly 200 mL of baking soda solution to neutralize the 200 mL vinegar solution. Here are some possible sources of error, but we may think of additional ones:
      1. The circuit may not have been accurately normalized (in step 10).
      2. The potentiometer might have been bumped during testing.
      3. Some extra vinegar may have been added to the "Vinegar" bowl from rinsing the conductivity sensor.
      4. Liquid from either bowl may have been spilled during testing.
      5. The baking soda solution was not stirred enough while it was being added to the "Vinegar" bowl. If this happens, the conductivity sensor may still detect an acidic solution, even though parts of the solution in the bowl have been completely neutralized (or may even be basic).
      6. Mistakes in preparing the baking soda solution should not actually be a source of error.
      7. Note: Because pH reactions occur on a logarithmic scale, the error measurements can be on a logarithmic scale, too. This means that a margin of error that may seem large (such as having 150 mL baking soda leftover instead of 100 mL) is actually not that big.
      8. Think about how each possible source of error may have affected our results.
  5. Plan how we could change our model and/or our testing procedure to make the model more accurate. Whatever we decide to change, be sure to record our plans in our lab notebook. Specifically, think about:
    1. What could we physically change about our circuit, conductivity sensor, or experimental setup? For example, could we improve the stability of our sensor if it was moving around, or build a new sensor with some changes to the design?
    2. What could we change about the procedure we used when doing the experiment? For example, could we somehow stir the solution in the "Vinegar" bowl more evenly while the pump is on and pumping in baking soda solution?

  1. Clean and dry the mixing bowls and repeat steps 1–17 to test our model again, with the changes we decided on in step 18, and analyze its results.
    1. Note that this model may not necessarily be more accurate than the original model. This is part of the challenge of the engineering design process.
  2. If we want, we can change our model and/or testing procedure even more by repeating steps 18–19 one or more times.
  3. We can make a bar graph of our results, with a bar for each time we tested the model (labeled on the x-axis) that shows how much vinegar remained when testing each time (labeled on the y-axis in mL).We can draw a horizontal line across the graph at the "100 mL" point to show the ideal amount of baking soda left.
  4. Optional: If we took pH measurements, we can analyze those results as well.
    1. How much did the pH of the vinegar solution change by the addition of the baking soda?
    2. Was the pH of the original neutralized solution the same as the pH of the solution when the pump stopped running?




D. Bibliography: List at least five (5) major references (e.g. science journal articles, books, internet sites) from your literature review. If you plan to use vertebrate animals, one of these references must be an animal care reference. Choose the APA format and use it consistently to reference the literature used in the research plan. List your entries in alphabetical order.


How does my group get the findings and the results?

We have to go through what our experiment is doing. My group is doing the artificial pancreas. We are using baking soda, vinegar and a neutralised solution.So we measure the pH level of the neutralised baking soda and vinegar.  We are attaching the pump to the baking soda and vinegar. So  solution is connected to the breadboard. So the neutralised solution is the standard Ph level. Then, we are going to pump the baking soda into the vinegar. Thus the Ph level of the vinegar will become the Ph level of the neutralised solution. The breadboard will determine when the pump will stop.
Results:
Finding the Ph level of vinegar.
Finding the Ph level of neutralised solution(vinegar and baking soda with water)
After the experiment we are take the Ph level of the vinegar now with the baking soda.

Sample
Initial pH
Components
Action
Final pH
1
4
Vinegar
Baking soda is pumped
7
2
7
Plain Water
Baking soda is not pumped
7







The pictures of our experiment
This is some of our photos of our experiment. There are 3 containers, each marked neutralised, vinegar and baking soda respectively. The 4th photo is a photo of our setup of the breadboard, the pump and the batteries.




Future Development
In our experiment, we want to modify our system to be used for patients for type 1 diabetes. We want to use the simple system of annikken andee and PCB boarding. We use the annikken andee to connect to the mobile and PCB boarding instead of breadboard.



22 sources/websites

D. Bibliography: List at least five (5) major references (e.g. science journal articles, books, internet sites) from your literature review. If you plan to use vertebrate animals, one of these references must be an animal care reference. Choose the APA format and use it consistently to reference the literature used in the research plan. List your entries in alphabetical order.

Video Resources
1)Artificial Pancreas Press Conference [Motion picture]. (n.d.). U.S.

2)Living with Diabetes:Molly [Motion picture]. (2012). Children's Healthcare of Atlanta.

3)Wearing the Bionic Pancreas - Experiencing Life in a New Way [Motion picture]. (2014). Glu Staff

4)World's first artificial pancreas - How to build a Bionic Man - De Montfort University (DMU) [Motion picture]. (2013). DMU Leicester.







Website Resources


1)Academy, K. (n.d.). Blood sugar levels. Retrieved January 13, 2015, from https://www.khanacademy.org/science/health-and-medicine/endocrinology-and-diabetes/v/blood-sugar-levels


3)Artificial pancreas better than pump for managing type 1 diabetes. (2014, November 27). Retrieved January 13, 2015, from http://www.medicalnewstoday.com/articles/286101.php

4) Artificial Pancreas. (n.d.). Retrieved January 13, 2015, from http://jdrf.org/artificialpancreas/

5)Artificial pancreas. (n.d.). Retrieved January 13, 2015, from http://en.wikipedia.org/wiki/Artificial_pancreas

6)The Artificial Pancreas Aces New Tests. (2004, March 1). Retrieved January 13, 2015, from http://www.diabetesforecast.org/2014/mar/the-artificial-pancreas-aces.html

7)Buddies, S. (n.d.). Dealing with Diabetes: The Road to Developing an Artificial Pancreas. Retrieved January 13, 2015, from http://www.sciencebuddies.org/science-fair-projects/project_ideas/HumBio_p040.shtml

8)Buddies, S. (n.d.). Dealing with Diabetes: The Road to Developing an Artificial Pancreas, Materials. Retrieved January 13, 2015, from http://www.sciencebuddies.org/science-fair-projects/project_ideas/HumBio_p040.shtml#materials

9)Buddies, S. (n.d.). Dealing with Diabetes: The Road to Developing an Artificial Pancreas. Retrieved January 13, 2015, from http://www.sciencebuddies.org/science-fair-projects/project_ideas/HumBio_p040.shtml#procedure

10)Diabetes Insulin Pump: How It Works. (2012, June 12). Retrieved January 13, 2015, from http://www.webmd.com/diabetes/insulin-pump

11)Grau, D. (2014, January 1). Bionic Pancreas: A Father's Mission To Fight Type 1 Diabetes. Yahoo! News. Retrieved January 13, 2015, from http://news.yahoo.com/katie-couric-bionic-pancreas-104752872.html#0

12)General Chemistry/Properties and Theories of Acids and Bases. (n.d.). Retrieved from http://en.wikibooks.org/w/index.php?title=General_Chemistry/Properties_and_Theories_of_Acids_and_Bases&oldid=2630322


13)Johnson, S. (2014, September 23). Modern Life Without a Pancreas. Retrieved January 13, 2015, from http://www.theatlantic.com/technology/archive/2014/09/modern-life-without-a-pancreas/380593/

14)Krucik, G. (n.d.). Oral Insulin. Retrieved January 15, 2015, from http://www.healthline.com/health/type-2-diabetes/oral-insulin

15) Nodisk, N. (n.d.). Facts about diabetes. Retrieved January 13, 2015, from http://www.novonordisk.com/diabetes_care/facts_about_diabetes/default.asp

16)The Pancreas and Its Functions. (n.d.). Retrieved January 13, 2015, from http://pancreasmd.org/education_home.html

17)Product Developers & Technology Consultants. (2013, June 19). Retrieved January 13, 2015, from  http://www.cambridgeconsultants.com/news/pr/release/133/en

18)Science Buddies Staff. (2014, December 10). Dealing with Diabetes: The Road to Developing an Artificial Pancreas. Retrieved January 12, 2015 from

19)U.S. Food and Drug Administration. (n.d.). Retrieved January 13, 2015, from

Book Resources
1)Lam, P., & Lam, E. (2013). Hormones. In Biology matters (2nd ed.). Singapore: Marshall Cavendish Education.

No comments:

Post a Comment
